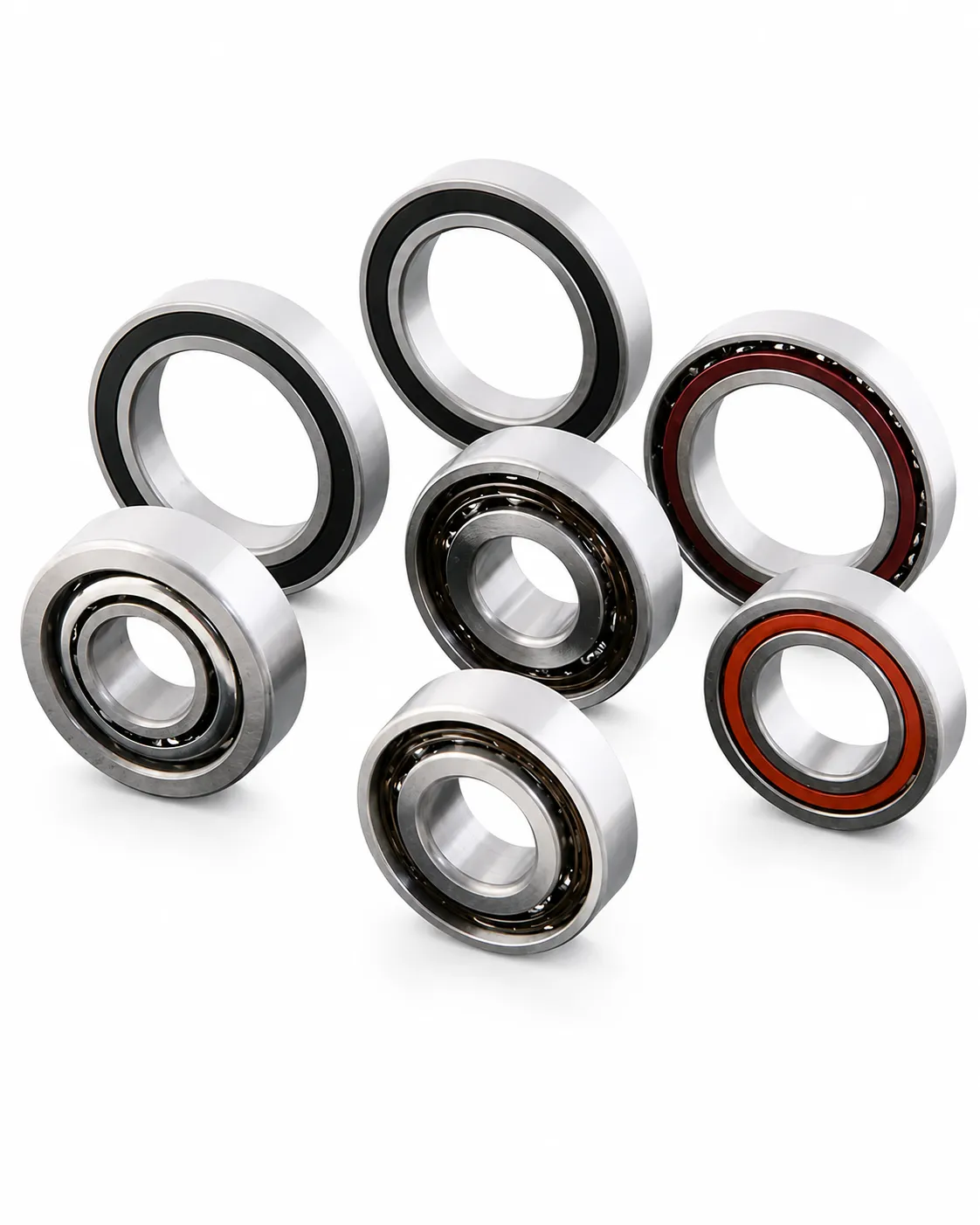

Single Row Angular Contact Ball Bearings

Single row angular contact ball bearings are designed to support combined radial and axial loads, with axial load capacity in one direction. The optimized contact angle provides higher axial load capability and precise shaft guidance compared to deep groove ball bearings.
Lumi manufactures high-quality single row angular contact ball bearings with precision-ground raceways and controlled contact angle geometry, ensuring smooth operation, stable running accuracy, and reliable performance under high-speed and high-load conditions.
Our single row angular contact bearings are available in various sizes, contact angles, and cage designs, with open, shielded, or sealed configurations. They are widely used in machine tools, pumps, compressors, gearboxes, and other precision industrial equipment.
Lumi also offers OEM / ODM customization services, including contact angle selection, internal clearance control, cage material optimization, sealing solutions, and lubrication design, to meet specific application requirements.

Request a quote

Single Row Angular Contact Ball Bearings

Single Row Angular Contact Ball Bearings: Performance & Advantages

The optimized contact angle design allows single row angular contact ball bearings to support combined radial and axial loads, providing high axial load capacity in one direction for stable and reliable operation.

One-Direction Axial Load Capacity

Precision-ground raceways and controlled internal geometry ensure accurate shaft positioning and stable running accuracy, making these bearings suitable for precision and high-speed
applications.

High Running Accuracy & Shaft Guidance

Low-friction internal design and carefully matched components enable smooth operation, reduced heat generation, and reliable performance during continuous high-speed operation.

Smooth High-Speed Operation

Single row angular contact ball bearings are available in multiple contact angles, cage designs, and sealing configurations, allowing flexible adaptation to different installation requirements and operating conditions.

Flexible Design Options

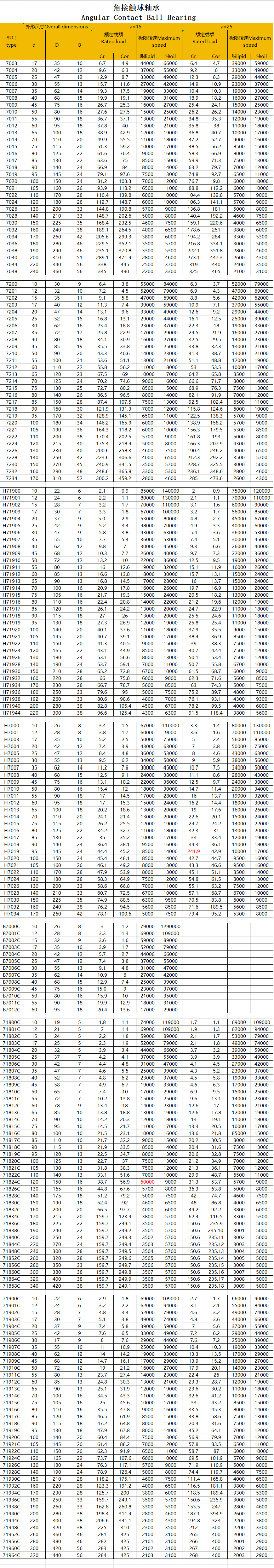

Single Row Angular Contact Ball Bearings: Angular Contact Ball Bearing Series

7000 Series – 15° (High-Speed Type)

The 7000 series is designed with a small contact angle and is optimized for high-speed operation with light axial loads. These bearings feature low friction, excellent rotational accuracy, and high limiting speeds, making them suitable for machine tool spindles, high-speed motors, and precision instruments.

Request a quote

7200 Series – 25° (General Purpose Type)

The 7200 series offers a balanced combination of axial load capacity and high-speed performance. With a medium contact angle, these bearings support moderate radial and axial loads and maintain stable rotational accuracy, making them widely used in machine tools, pumps, compressors, and industrial gear systems.

Request a quote

7300 Series – 40° (High Axial Load Type)

The 7300 series is designed with a large contact angle to provide high axial load capacity and increased bearing stiffness. These bearings are suitable for heavy axial load applications requiring high rigidity and accurate axial positioning, such as machine tool spindles, vertical shafts, and precision transmission systems.

Request a quote

7000 Series – 15° (High-Speed Type)

The 7000 series is designed with a small contact angle and is optimized for high-speed operation with light axial loads. These bearings feature low friction, excellent rotational accuracy, and high limiting speeds, making them suitable for machine tool spindles, high-speed motors, and precision instruments.

Request a quote

7200 Series – 25° (General Purpose Type)

The 7200 series offers a balanced combination of axial load capacity and high-speed performance. With a medium contact angle, these bearings support moderate radial and axial loads and maintain stable rotational accuracy, making them widely used in machine tools, pumps, compressors, and industrial gear systems.

Request a quote

7300 Series – 40° (High Axial Load Type)

The 7300 series is designed with a large contact angle to provide high axial load capacity and increased bearing stiffness. These bearings are suitable for heavy axial load applications requiring high rigidity and accurate axial positioning, such as machine tool spindles, vertical shafts, and precision transmission systems.

Request a quote

1 / 3

Single Row Angular Contact Ball Bearings: Applications in Precision Equipment

Single row angular contact ball bearings are widely used in precision equipment requiring combined radial and axial load support, high rotational accuracy, and stable high-speed performance. Their optimized contact angle design ensures reliable axial positioning and performance under demanding operating conditions.

Automotive

Drone/UVA

Fitness Equipment

Robotics

Gearboxes

Food Machinery

Agricultural Machinery

Home Appliances

Single Row Angular Contact Ball Bearings: Customization & OEM/ODM

• Contact Angle Selection: Customized contact angles (15°, 25°, 30°, 40° or special designs) to optimize axial load capacity and speed performance.
• Internal Clearance Control: Available internal clearance options to meet precision, stiffness, and thermal expansion requirements.
• Cage Design & Material Options: Steel, brass, or polymer cages optimized for speed, load, and operating environment.
• Sealing & Shielding Solutions: Open, shielded (ZZ), or sealed (2RS) configurations for different contamination and lubrication conditions.

• Lubrication Selection: Grease type and fill optimized for speed, temperature, noise, and service life requirements.
Lumi OEM / ODM services support custom dimensions, performance tuning, and application-specific designs. Our engineering team provides technical consultation, drawing review, and prototype support to ensure reliable performance and long-term stability in customer applications.

• Contact Angle Selection: Customized contact angles (15°, 25°, 30°, 40° or special designs) to optimize axial load capacity and speed performance.
• Internal Clearance Control: Available internal clearance options to meet precision, stiffness, and thermal expansion requirements.
• Cage Design & Material Options: Steel, brass, or polymer cages optimized for speed, load, and operating environment.
• Sealing & Shielding Solutions: Open, shielded (ZZ), or sealed (2RS) configurations for different contamination and lubrication conditions.

• Lubrication Selection: Grease type and fill optimized for speed, temperature, noise, and service life requirements.
Lumi OEM / ODM services support custom dimensions, performance tuning, and application-specific designs. Our engineering team provides technical consultation, drawing review, and prototype support to ensure reliable performance and long-term stability in customer applications.
