Flanged Ball Bearings

Flanged ball bearings feature an integrated flange on the outer ring to provide accurate axial positioning and stable mounting in compact assemblies. This design prevents axial movement, simplifies installation, and improves overall assembly efficiency.
Lumi manufactures flanged ball bearings in chrome steel and stainless steel materials, offering smooth operation, low noise, and reliable performance for precision and space-constrained applications.
With optimized raceway design and controlled manufacturing processes, Lumi flanged ball bearings deliver stable radial load support, high rotational accuracy, and long service life across a wide range of industrial uses.
Lumi also provides OEM / ODM customization, including flange dimensions, material selection, sealing options (open, ZZ, 2RS), and lubrication solutions to meet specific installation and application requirements.

Request a quote

Flanged Ball Bearings

Flanged Ball Bearings: Performance & Advantages

The integrated flange provides accurate axial positioning, reducing axial movement during installation and operation.

Accurate Axial Positioning

Flanged designs reduce the need for additional locating components, enabling faster assembly and simpler housing construction.

Simplified Installation

By providing inherent axial support, flanged ball bearings improve mounting stability and maintain consistent positioning under load.

Stable Installation

Flanged ball bearings are designed to support radial loads while accommodating limited axial loads in typical applications.

Reliable Load Support

Optimized raceway geometry and controlled internal clearance ensure smooth rotation and low-noise operation.

Low Noise Operation

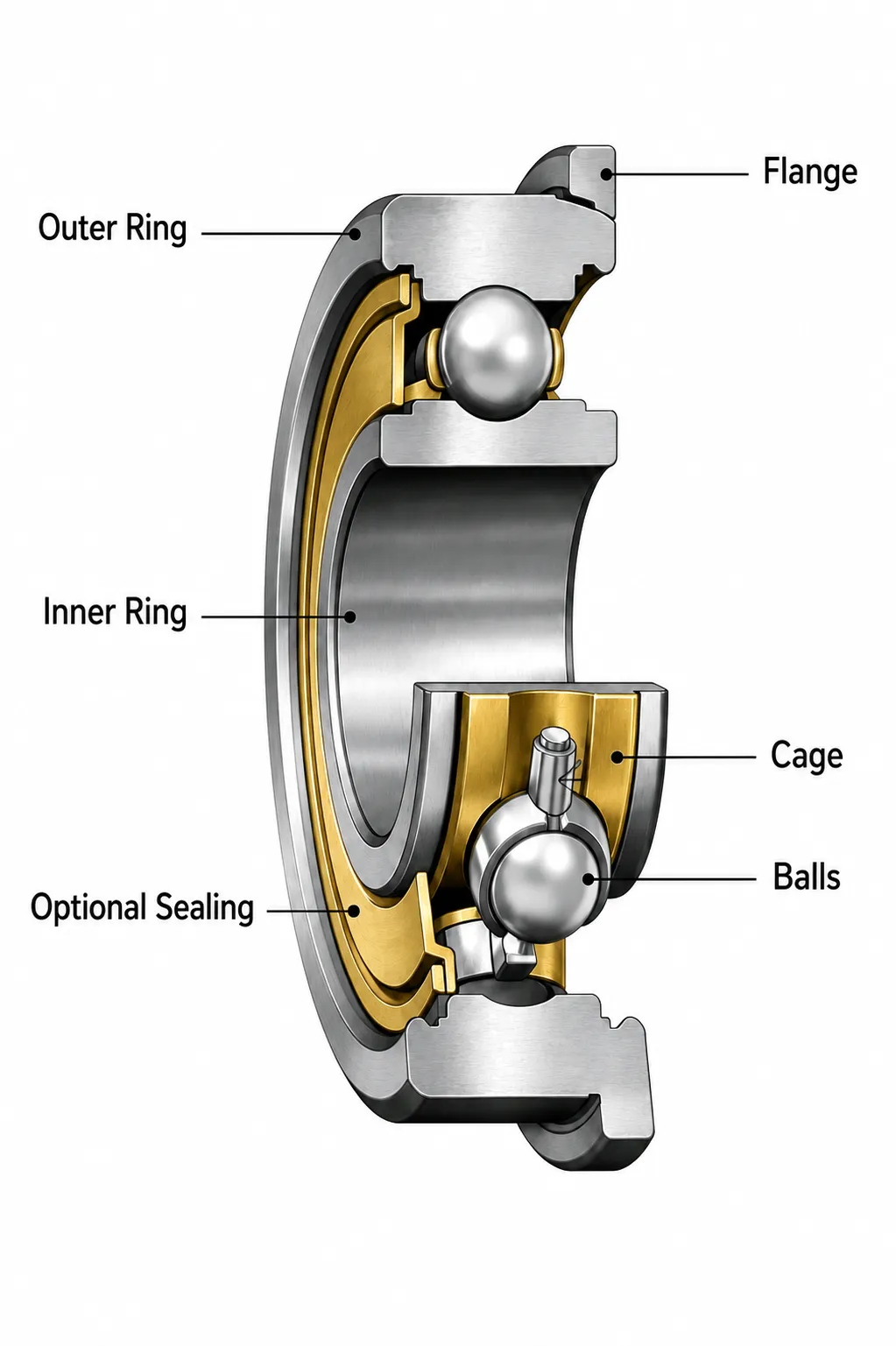

Flanged Ball Bearings: Structure

Inner Ring: The inner ring is precision-machined from stainless steel, featuring a smooth and accurately ground raceway. It ensures stable rotation and supports radial loads with consistent performance under corrosive or humid conditions.
Outer Ring: The outer ring is manufactured from corrosion-resistant stainless steel with a deep groove raceway design. It provides reliable support for radial loads and limited axial loads in both directions.
Balls: High-quality stainless steel balls are precisely matched to the raceways, ensuring uniform load distribution, reduced friction, and smooth operation across a wide speed range.
Cage: The cage accurately guides and separates the balls, maintaining consistent spacing and reducing friction and heat generation. This contributes to stable performance and extended service life.
Seals / Shields: Optional seals or shields protect the bearing from contaminants such as dust, moisture, and particles, further enhancing durability and reliability in demanding environments.
